Workbench Model Tooling


While traveling by train to Vienna and back I had time to invest some time into the workbench tooling and I think I added some nice and helpful things.

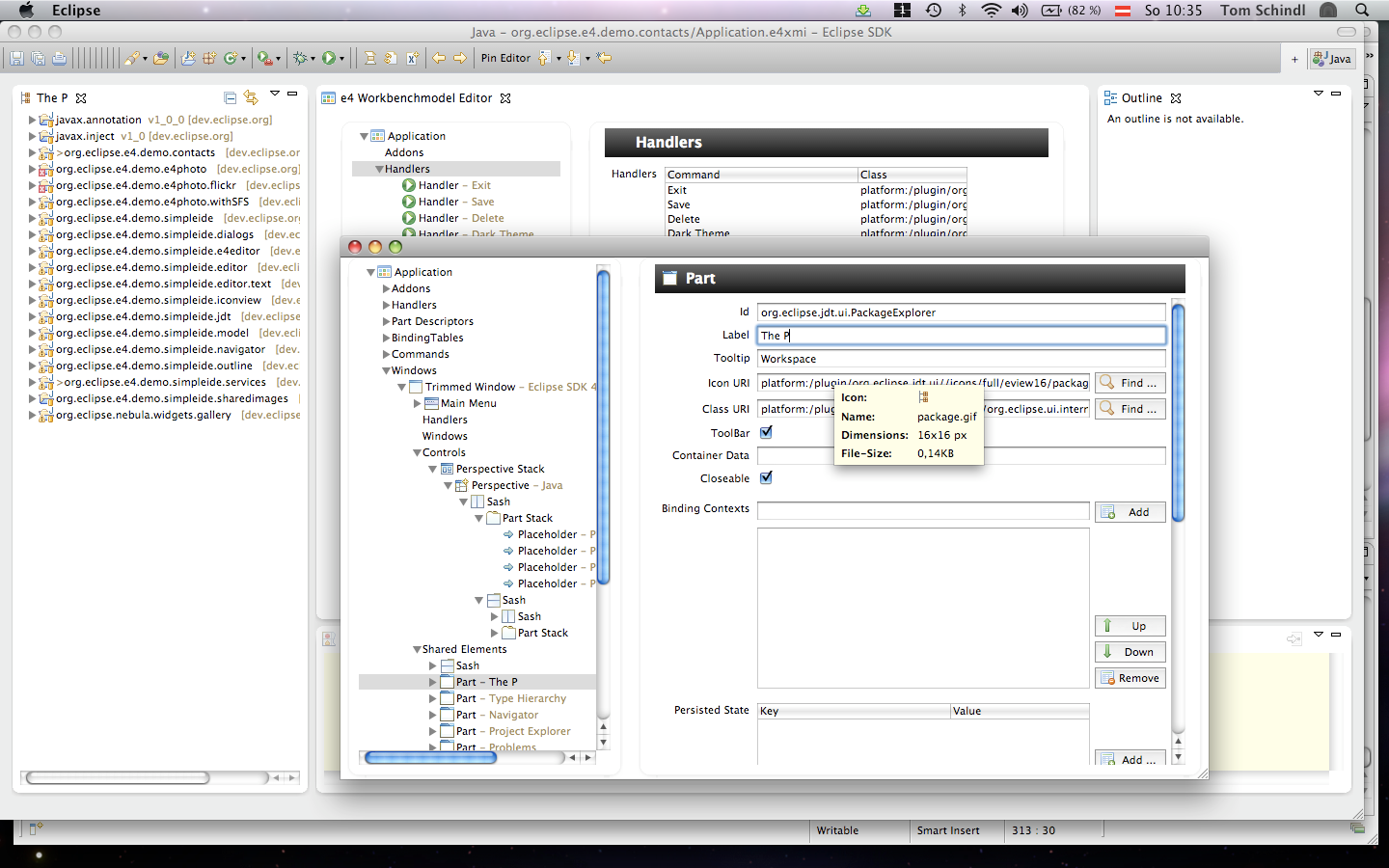

  • “Live” Model Inspection:

    The first and most important feature is that you can now inspect the model of your running workbench by hitting CTRL+SHIFT+I

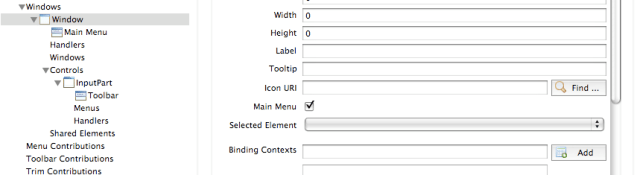

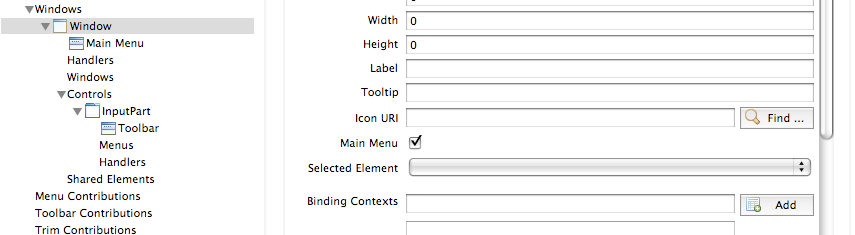

  • Better support for Window-MainMenu and Part-ToolBar

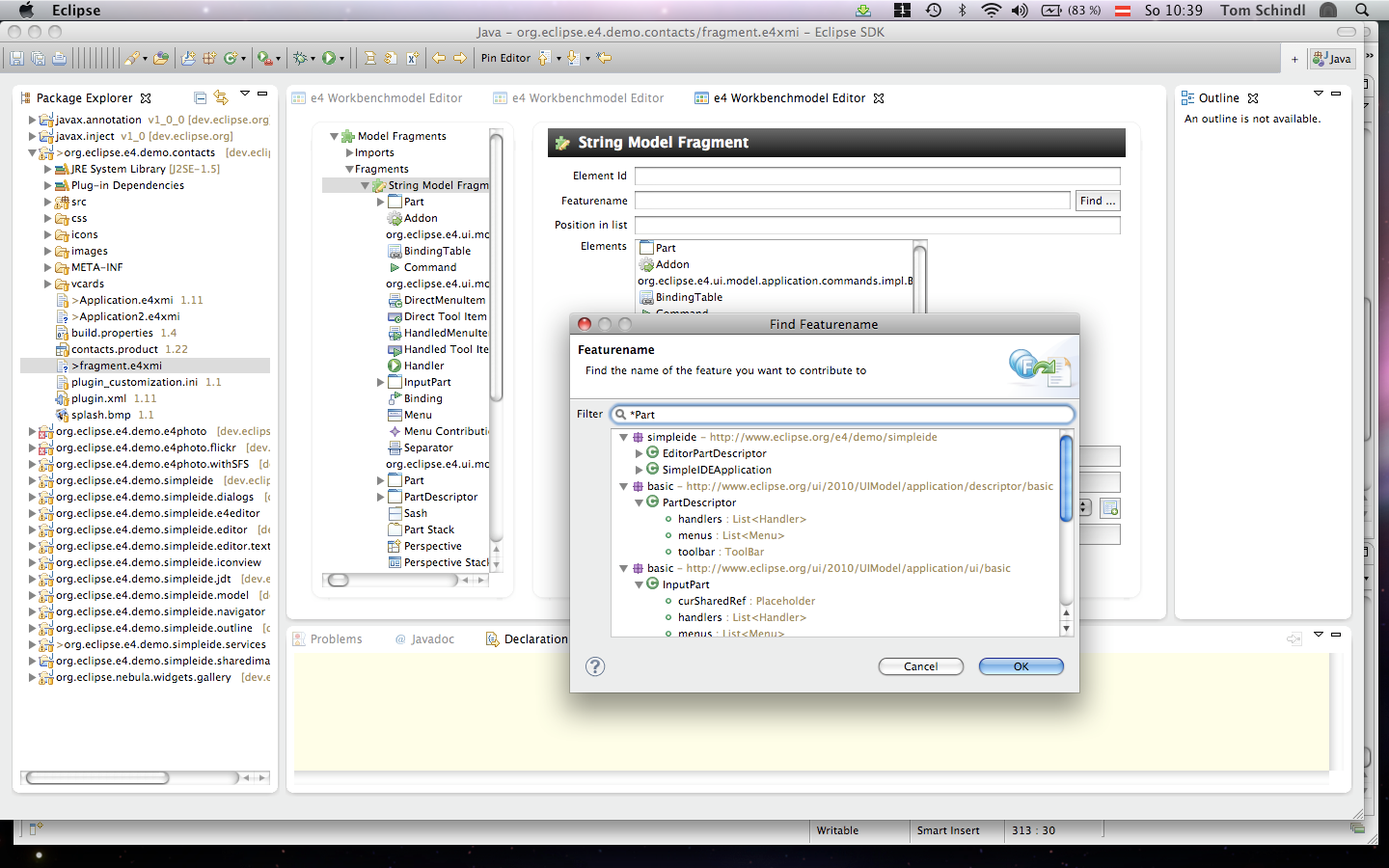

  • Adding Support for Fragment-Tooling

The tooling is not as good as I had hoped to be at this point (e.g. taking part in renaming actions is not supported and I doubt to get this ready for the July release). I’ll try to invest some more time into this but I need to feedback from people to find problems and missing features, … .
I can’t guarantee to implement all of them but your input is crucial to at least fix the most important parts.

Advertisements
This entry was posted in e4. Bookmark the permalink.

15 Responses to Workbench Model Tooling

  1. Lars Vogel says:

    CTRL+SHIFT+I is a cool feature. This is very good for demos! Thanks again.

  2. Lars Vogel says:

    What do I have to do to make CTRL+SHIFT+I available in an e4 based RCP application?

    • tomeclipsedev says:

      Add the “org.eclipse.e4.tools.emf.liveeditor” to your launch config and hit “Add Required Plug-ins”

  3. Lars Vogel says:

    Thanks Tom. If I do this I see the console message “Created Live Dialog Handler” but the shortcut doesn’t do anything. Also if I press this combination in the latest SDK build I get: “A stack frame must be selected to provide a context for an evaluation”.

    • tomeclipsedev says:

      Do you have a BindingTable in your RCP-application, else the processor is not able to register a keybinding. On the SDK problem I’m not sure what you are seeing there. I’m running on CVS HEAD. Is there probably another keybinding active in the context you are hitting CTRL+SHIFT+I?

  4. Lars Vogel says:

    @Tom: Thanks for the clarification via IRC. I need to have bindingTables defined in my Application.e4xmi otherwise the keybinding cannot be created.

    Thanks again.

  5. Kai Tödter says:

    Hm, I cannot get it run with the contacts demo. I have a binding table in my exmi and CTRL+SHIFT+I is not overwritten. I am using the latest head. Any hints?

    • tomeclipsedev says:

      we changed that to CTRL+SHIFT+F9

      • Kai Tödter says:

        CTRL+SHIFT+F9 does not work either. Could you check with the latest contacts demo? Thanks!

      • tomeclipsedev says:

        sorry ALT+SHIFT+F9 => just tested it and it works like “charme” beside the fact that you are globally redefining the style of Controls like Label, … so the editor is not 100% useable.

  6. On a MacBook, use and in the OSX System Preferences make sure you uncheck the ‘keys as standard function keys’ option.

  7. On a MacBook, use FN+SHIFT+ALT/OPTION+F9 and in the OSX System Preferences make sure you uncheck the ‘keys as standard function keys’ checkbox.

  8. Winne says:

    Are there any new on the injection exception discussed here?
    https://bugs.eclipse.org/bugs/show_bug.cgi?id=394503
    I have the same problem (“Unable to process “ApplicationModelEditor.shell”: no actual value was found for the argument “Shell”.”) and would love to try the live model editor…
