e(fx)clipse 0.0.7 released


UPDATE
Please download the latest version from efxclipse.org

So the next release 0.0.7 with a huge amount of new features is available so let’s directly dive into it them.

Tooling

New Wizards

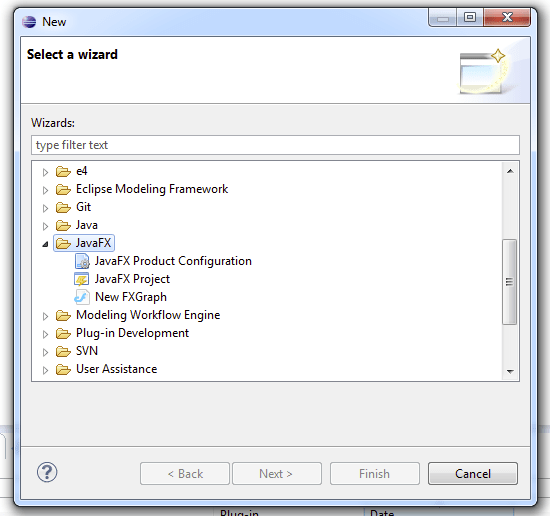

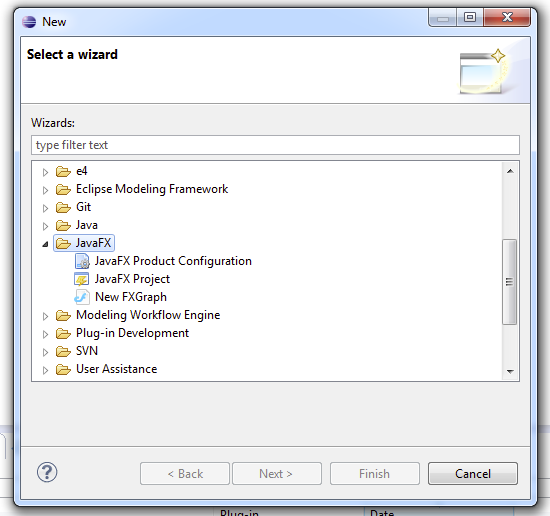

  • A JavaFX category to group all JavaFX-Wizards has been added

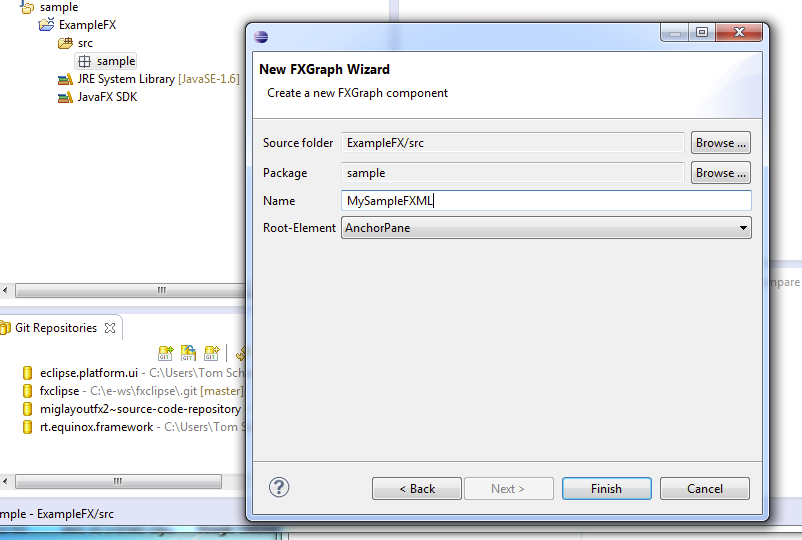

  • A Wizards to create FXGraph-Files has been added who takes care that the src-gen directory is created if it does not exist so that the fxml-File can be generated for you in the background

FXGraph

Speaking of my FXGraph-DSL the syntax has change so that the live preview e.g. knows where to locate CSS-Files and Resource-Properties take a look the git-repo to see how FXGraph-Files now look like beside that the following things have been changed/improved:

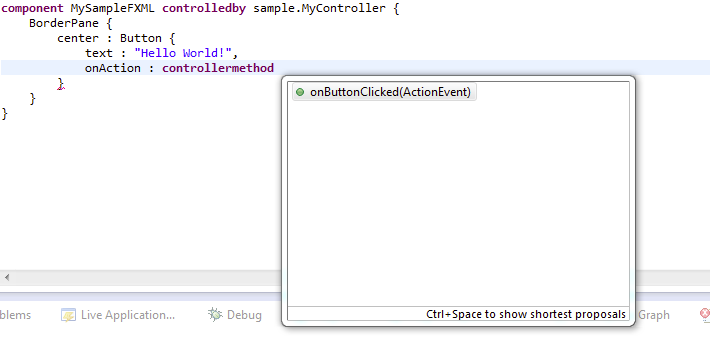

  • Autocompletion for controller methods

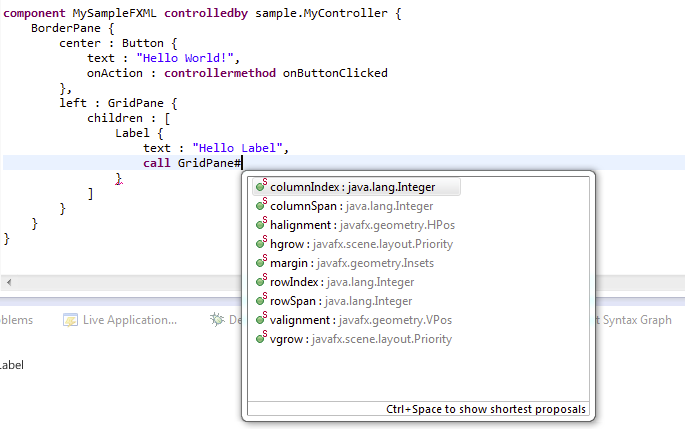

  • Autocompletion for static properties (used mainly to set layout informations)
  • JavaDoc displayed for fairly Java elements you reference (controller, properties, …)

Live Preview

Although this is a feature of the FXGraph-Tooling I think this feature deserves its own entry because it is a really cool feature when writing UIs using FXGraph because you directly see which effect a change is going to have in the final UI. I’ve recorded a small videa showing the FXGraph-Tooling in action:

CSS

I once more fixed some CSS-Problems like the fact that e.g. Alpha-Hex-Colors have been marked as errors

Documentation

I’ve added an install documentation to the Wiki because to get the “Live Preview” working you’ll have to add an extra attribute to your eclipse.ini

Runtime

Detection of Installed JavaFX-Binaries

I’m now reading the installation directory from the Windows registry.

Eclipse Databinding for JavaFX’s properties

A component is included which allows one to use observe properties of JavaFX-Objects using Eclipse Databinding which then allows one to bind them e.g. to JavaBeans, EObjects, … .

Support for DI in FXML-Controllers

Google Guice

For standard java users I’ve added a small library which allows one to use Google Guice for the controllers so that one doesn’t have to think a lot one self on how to inject informations into your controller.

Eclipse DI user

For those of you who want to use Eclipse DI which was developed for Eclipse 4.x and is used by the Eclipse 4.x Application Platform an OSGi bundle is available that takes care of making FXML to work inside Equinox. There are some special things needed as I outlined in this blog post but you don’t need to care about this and simple let you inject a appropriately configured FXML-Loader.

import java.io.IOException;

import javafx.scene.Node;
import javafx.scene.layout.BorderPane;

import javax.annotation.PostConstruct;

import at.bestsolution.efxclipse.runtime.di.FXMLBuilder;
import at.bestsolution.efxclipse.runtime.di.FXMLLoader;
import at.bestsolution.efxclipse.runtime.di.FXMLLoaderFactory;

public class MyClass {
  @Inject
  @FXMLLoader
  private FXMLLoaderFactory factory;

  @PostConstruct
  void init(BorderPane parent) {
    try {
      FXMLBuilder<Node> builder =
        factory.loadRequestorRelative("personform.fxml");
      parent.setCenter(builder.load());
    } catch (IOException e) {
      e.printStackTrace();
    }
  }
}

Eclipse 4.x Application Platform for JavaFX

I saw that there was a talk at JavaOne 2011 about providing a JavaFX-RCP-Framework ontop the Netbeans-Core-Runtime – I only looked at their slides and not at their code yet. Well my efforts are the same and this release now holds a first version of an implementation of such a platform.

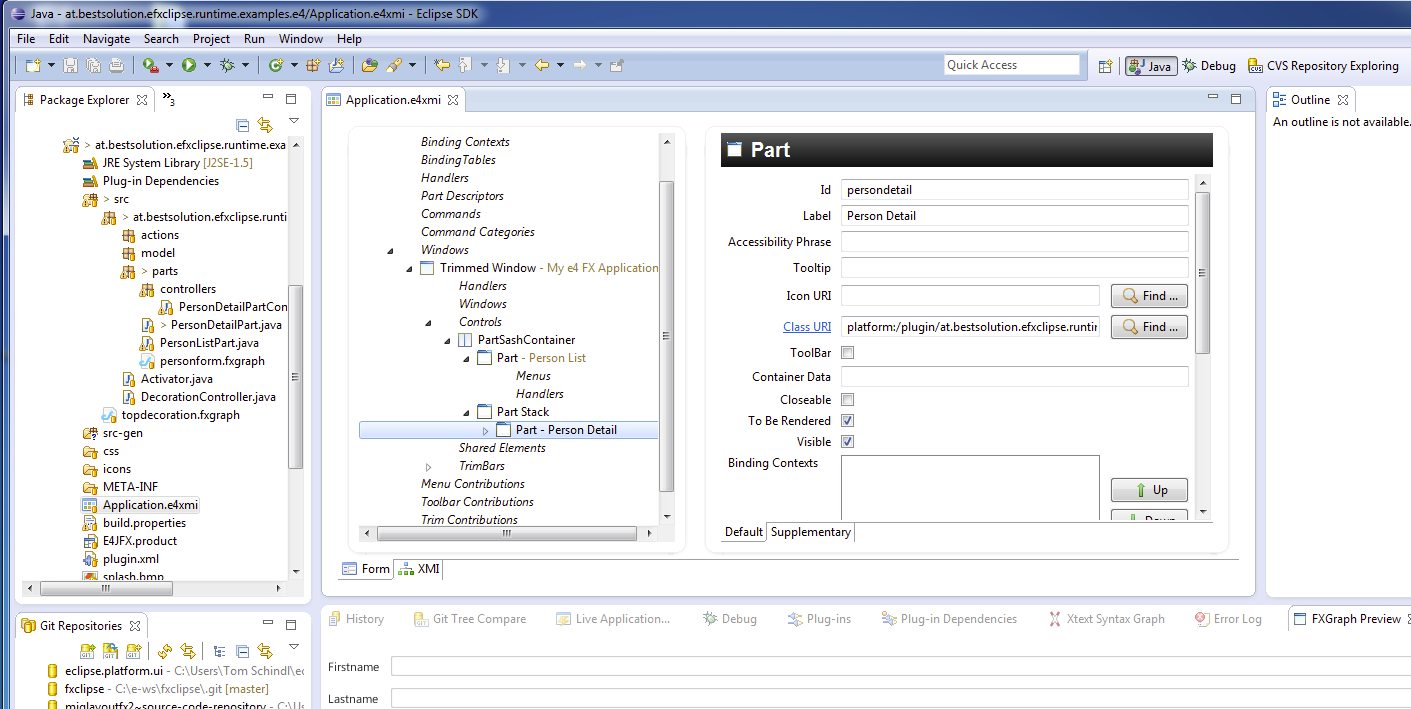

Here’s the model of the application:

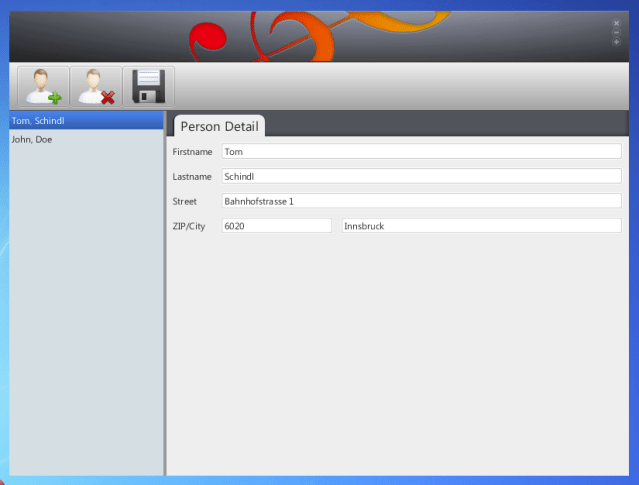

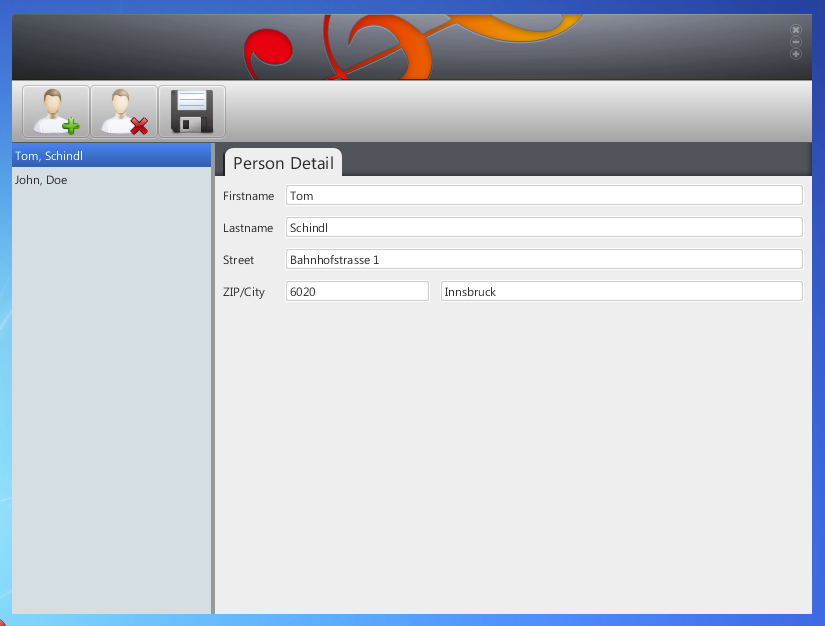

And the running application:

What I think is very nice is how the EAP, FXGraph (FXML), Eclipse Databinding and DI can work together to create an UI. Take a look at the following code:

The Part-Definition:

package at.bestsolution.efxclipse.runtime.examples.e4.parts;

import java.io.IOException;

import javafx.scene.Node;
import javafx.scene.layout.BorderPane;

import javax.annotation.PostConstruct;

import at.bestsolution.efxclipse.runtime.di.FXMLBuilder;
import at.bestsolution.efxclipse.runtime.di.FXMLLoader;
import at.bestsolution.efxclipse.runtime.di.FXMLLoaderFactory;

public class PersonDetailPart {
  @PostConstruct
  void init(BorderPane parent, @FXMLLoader FXMLLoaderFactory factory) {
    try {
      FXMLBuilder<Node> builder = factory.loadRequestorRelative("personform.fxml");
      parent.setCenter(builder.load());
    } catch (IOException e) {
      e.printStackTrace();
    }
  }
}

The controller:

package at.bestsolution.efxclipse.runtime.examples.e4.parts.controllers;

import javafx.animation.FadeTransition;
import javafx.event.ActionEvent;
import javafx.event.EventHandler;
import javafx.fxml.FXML;
import javafx.scene.control.TextField;
import javafx.scene.layout.GridPane;
import javafx.util.Duration;

import javax.annotation.PostConstruct;
import javax.inject.Inject;
import javax.inject.Named;

import org.eclipse.core.databinding.DataBindingContext;
import org.eclipse.core.databinding.beans.BeanProperties;
import org.eclipse.core.databinding.observable.value.IObservableValue;
import org.eclipse.core.databinding.observable.value.WritableValue;
import org.eclipse.e4.core.di.annotations.Optional;

import at.bestsolution.efxclipse.runtime.databinding.IJFXBeanValueProperty;
import at.bestsolution.efxclipse.runtime.databinding.JFXBeanProperties;
import at.bestsolution.efxclipse.runtime.di.FXMLLoaderFactory;
import at.bestsolution.efxclipse.runtime.examples.e4.model.Person;

@SuppressWarnings("restriction")
public class PersonDetailPartController {
  private IObservableValue master = new WritableValue();

  @FXML
  TextField firstname;

  @FXML
  TextField lastname;

  @FXML
  TextField street;

  @FXML
  TextField zip;

  @FXML
  TextField city;

  private FadeTransition fadeOutTransition;

  private FadeTransition fadeInTransition;

  @PostConstruct
  void init(@Named(FXMLLoaderFactory.CONTEXT_KEY) GridPane rootPane) {
    IJFXBeanValueProperty uiProp = JFXBeanProperties.value("text");

    DataBindingContext ctx = new DataBindingContext();
    ctx.bindValue(uiProp.observe(firstname),
      BeanProperties.value("firstname").observeDetail(master));
    ctx.bindValue(uiProp.observe(lastname),
      BeanProperties.value("lastname").observeDetail(master));
    ctx.bindValue(uiProp.observe(street),
      BeanProperties.value("street").observeDetail(master));
    ctx.bindValue(uiProp.observe(zip),
      BeanProperties.value("zip").observeDetail(master));
    ctx.bindValue(uiProp.observe(city),
      BeanProperties.value("city").observeDetail(master));

    fadeOutTransition = new FadeTransition(Duration.millis(500), rootPane);
    fadeOutTransition.setFromValue(1.0f);
    fadeOutTransition.setToValue(0.0f);
    fadeOutTransition.setAutoReverse(true);

    fadeInTransition = new FadeTransition(Duration.millis(500), rootPane);
    fadeInTransition.setFromValue(0.0f);
    fadeInTransition.setToValue(1.0f);
    fadeInTransition.setAutoReverse(true);
  }

  @Inject
  public void setPerson(@Optional final Person person) {
    if( fadeOutTransition != null ) {
      fadeOutTransition.setOnFinished(new EventHandler<ActionEvent>() {
        public void handle(ActionEvent arg0) {
          master.setValue(person);
          fadeOutTransition.setOnFinished(null);
          fadeInTransition.playFromStart();
        }
      });

      fadeOutTransition.playFromStart();
    }
  }
}

What does the framework provide:

  • Modularity through OSGi
  • All features it inherits from the Eclipse Application Platform like a Command Framework, Event Bus, Dependency Injection, …
  • Themeability through CSS-Contribution (similar to how Eclipse 4.x provides such a feature)

Please note that JavaFX-Renderers are in a very early stage and most of the things are not yet implemented. Improvements will be made in the next releases. If you are interested in example codes, … simply clone my github-repository.

Please provide feedback on problems you encounter with the tooling as well of the runtime components (an important note in this respect is that to make @PostConstruct work you have to set the Bundle-RequiredExecutionEnvironment: J2SE-1.5 and not 1.6!).
